Elmo Projectors, parts, and accessories

Urbanski Film is the only manufacturer in the world of original equipment specification rollers for the Elmo CL, AL, and Xenon Elmo projectors.

Visit the Urbanski Film YouTube Channel for instructional videos on Elmo repair. UrbanskiFilm YouTube Channel

ELMO 16-CL, AL ROLLER KIT EXCHANGE Replace those deteriorating rubber rollers on your Elmo. This is a complete kit of 4 rollers. Elmo rollers are now manufactured by Urbanski Film to OEM specifications...$120 (5 roller kit for magnetic/optical CL, AL machines $149). Send your worn rollers to us...once we receive them we will invoice you for the replacements...email us for details.

  Here is a video on roller replacement.  https://youtu.be/VSqzgKn09vk

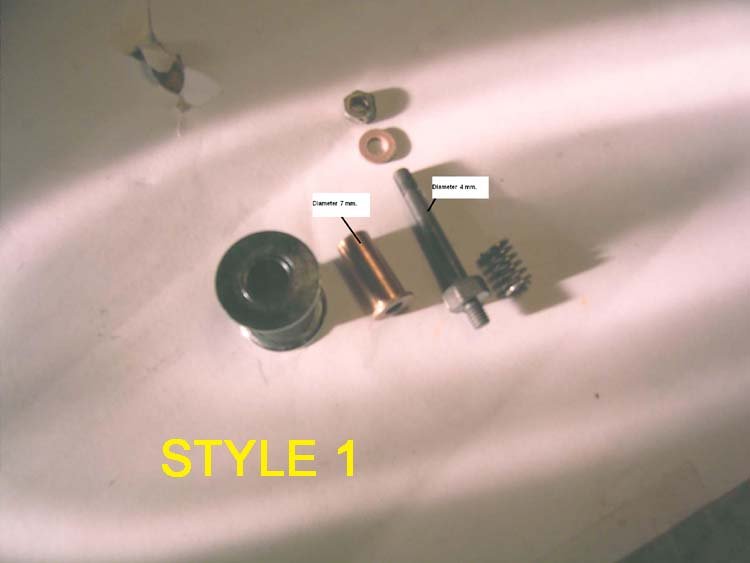

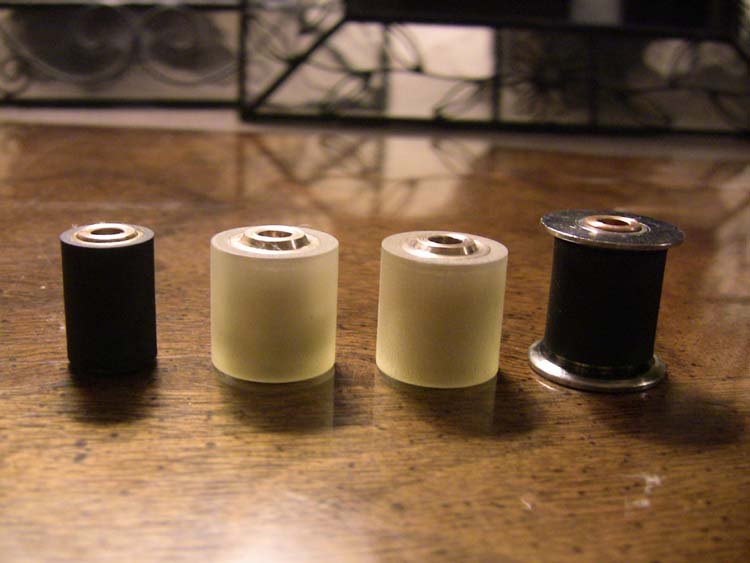

Some Elmo’s take a different “silver” edged flanged roller. Check on the shaft in back of the roller and see if there is a compression spring on the roller shaft. There are 2 styles with compression spring. One has a large bushing, one has a smaller bushing.There is also a style without a compression spring. Pictures of the spring flanged rollers are above. If there is no spring you have the standard flanged roller. Here is a video on roller types. https://youtu.be/RkfVgemKNqw  When you send your rollers to us we will supply the correct roller.

SERVICES  We offer full service and repair of Elmo Projectors. Please inquire.

PARTS, ACCESSORIES  We have many 16mm Elmo parts not listed. Let us know what you need.

• REAR TAKE UP ARM REBUILD KIT FOR THE ELMO 16MM PROJECTOR. Fits the CL, AL, and TRV models.  If the upper spindle (where the reel attaches on the rear arm) is made of metal, or dark gray plastic, this rebuild kit will upgrade the old flat belt system to the new cogged belt system . The flat belt system was changed by Elmo to a cogged belt system for better take up consistency. When the Elmo 16mm flat belt take up fails the bottom tire/roller gets gummy or loses its rubber. Even with a new flat belt, the rewind will not work properly. The solution is to replace the bottom shaft with a cogged pulley, and use the cogged belt.  You will need metric allen wrenches and screwdrivers for disassembly. This rebuild kit is NOT made to work if your projector has a WHITE upper spindle (where the reel attaches). $70 Installation video https://youtu.be/FsoKhoDcdH0
• REAR TAKE UP ARM BELT FOR THE ELMO 16MM PROJECTOR. New cogged belt (toothed belt) to fit the CL, AL, and TRV models. If your projector has a White, or Dark Gray plastic upper spindle (where the reel attaches) this new belt will help "take up" issues...$25
• ELMO 16MM MAINTENANCE MANUALS.  Please specify model..for the TRV-16, TRV-16G or CL.....$30
• ELMO 16-CL, AL MOTOR BELT.  Keeps the Elmo running smooth as silk!...$24
• BELT MATERIAL KIT. We recommend this kit for Elmo 8mm/Super 8 projectors.  We supply  round rubber belt material...make your own belts. Works well to replace those square belts.  1/8 inch thickness....three feet belt material in a kit.. material is easily joined with a candle flame...with instructions..kit is... $10
• ELMO PROJECTION AND SOUND LAMPS. Click on the Projector Lamps screen at the bottom of this page for a full selection of lamp choices.
• MAGNETIC PICK UP TOOL--TELESCOPIC. Neat little pencil size tool with magnetic end. A must for servicing projectors.  Keep magnetic end close when removing clips on Elmo rollers. Catches them from being lost. Retrieve screws and nuts that fall into the projector innards. Great for any mechanic application. Telescopic, extends 24 inches. $6
• OILER WITH LONG REACH THIN SPOUT   Ideal for lubricating projector parts..approx. 5 inch long thin tip for hard to get at places...2 ounce capacity...just fill with your favorite oil...$6

LENSES

CINEMASCOPE (ANAMORPHIC) LENS  Sancor scope lens "D" (Singer or ICECO markings) attaches directly to your Elmo prime lens......like new condition....$350.00
